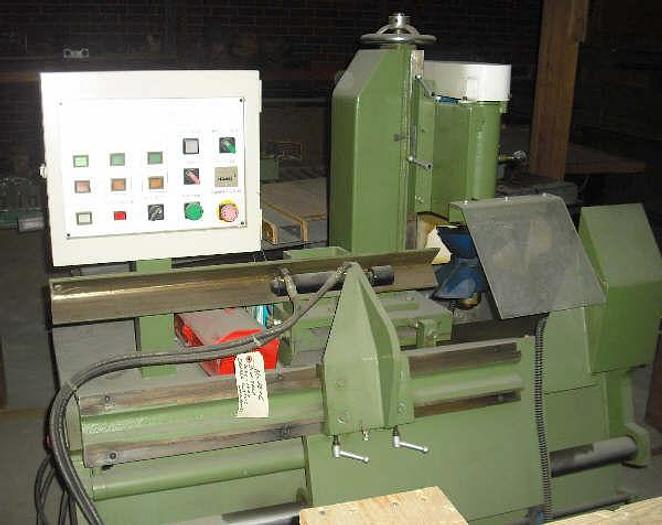

JOIN-TECH WSC-1000 SQUARE CUTTING/PROFILE SHAPING MACHINE

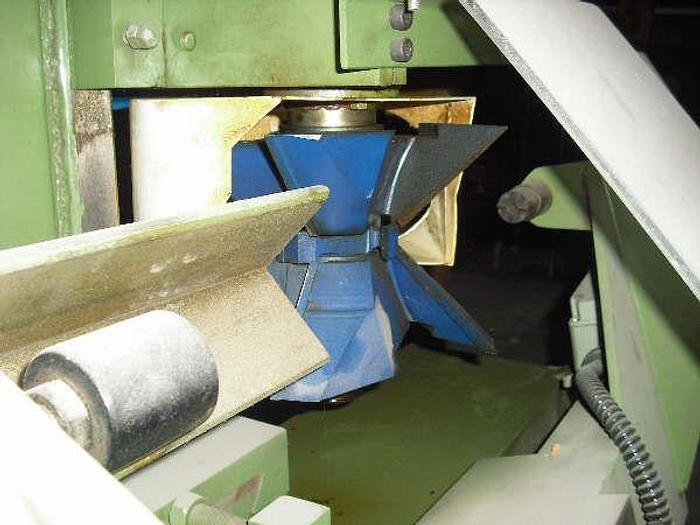

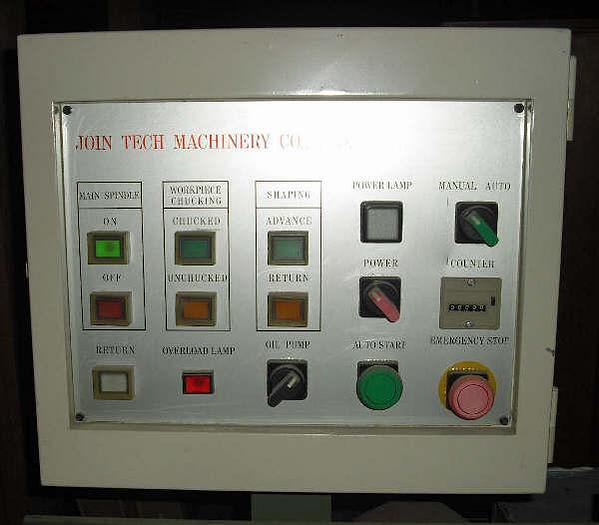

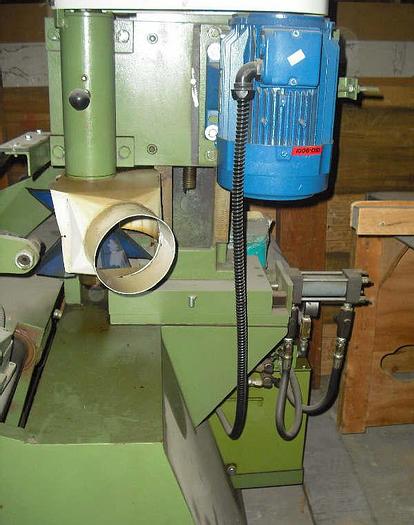

This machine is ideally used to shape a square corner on the top of leg turnings to provide secure anchoring of the leg to the framework, but can be used for fluting and profiling legs and turnings as well. General Specifications: - 5.5 HP, 220/440/60/3 shaper motor - Approx. 6" long spindle capacity, (1-3/4" diam. / to be verified) - Hydraulic carriage moves the work-piece past the fixed cutter-head - ~24" long part capacity with adjustable cutting length via limit switch - Head moves back hydraulically ~ 4" out the way for part loading - Vertical and horizontal adjustable shaper head - 1 HP self contained hydraulic pump - Includes 4" corner cutter with edge relief. (4" down each side of turning) - Push-button controls with Semi-automatic and manual controls - Foot pedal cycle actuated - 5" diameter dust outlet - 52" x 36" x 66" approx. overall dimensions - Weighs approx. 1,500 lbs. *Contact us for additional specifications and pricing
