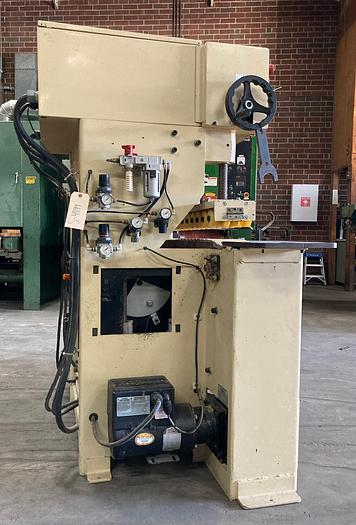

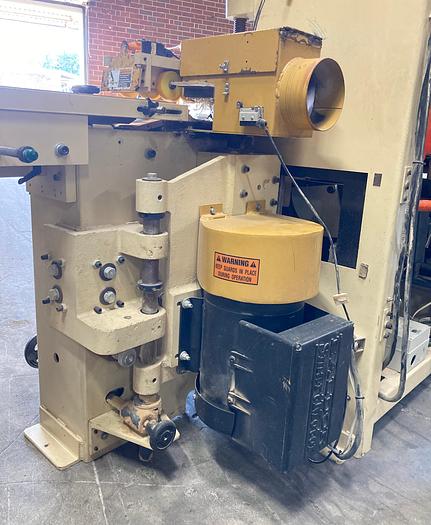

CROUCH CR-365 FEED-THROUGH SHAPE AND SAND MACHINE

CROUCH CR-365 FEED-THROUGH SHAPE AND SAND MACHINE

S/N:111, (230/60/3 electrics), H-2044

Standard Specifications, (to be verified):

- (1) 7-1/2 HP variable (5,000 to 7,000 rpm) belt-driven shaper station

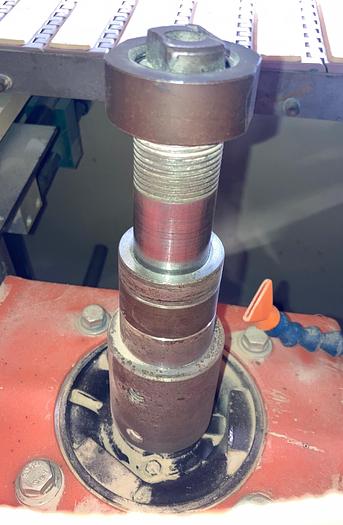

  - adjustable 1-1/4" x 4” long spindle, (raises, lowers, & moves in and out)

  - Manual adjustments via hand wheels with mechanical digital indicators

  - 6” diameter opening of dust hood

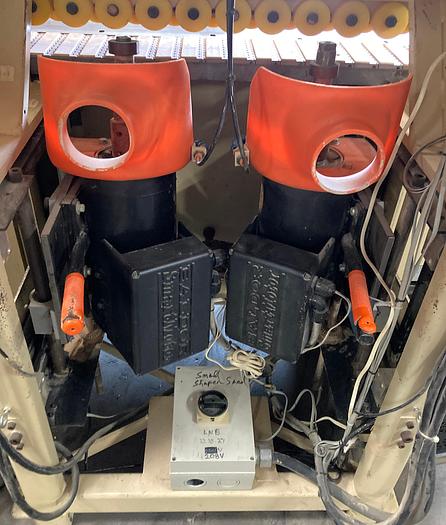

- (2) 2 HP variable speed, (400 to 1,800 RPM) tilting direct drive sanding stations

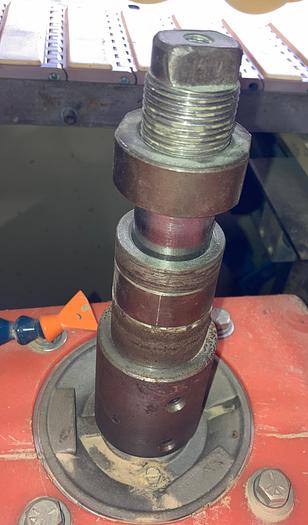

  - 1-1/4" diameter x 4” long spindles operate in forward and reverse motion

  - Manual adjustments via hand wheels with mechanical digital indicators

  - 4” diameter dust hoods

- 1 HP variable (4 to 30 ft/min.) 6” wide rubber padded feed track system

 - (4) staggered rows of adjustable down-pressure/hold-down rubber feed wheels

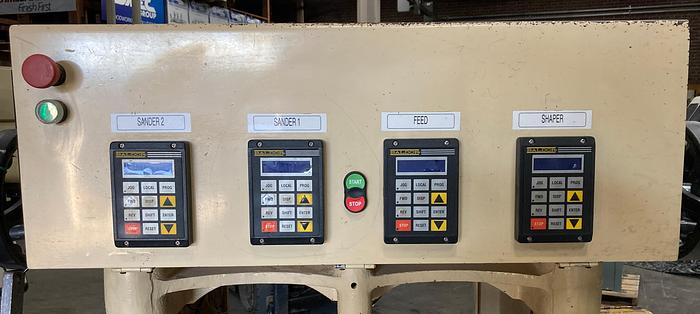

- (4) digital VFD controls for on/off, speed, and direction controls

- Includes adjustable side-stop reference fence and accessories

- 86” x 36” x 58” overall dimensions

- Weighs approximately 2,165 lbs.
