US CONCEPT CHF-8, 8" HAUNCHER
No longer available
Specifications
| Manufacturer | US CONCEPT |
| Model | CHF-8, 8" HAUNCHER |
| Condition | Used |
| Stock Number | S-4905 |
Description

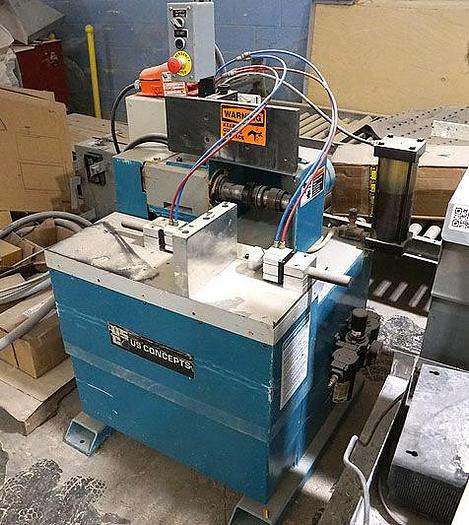

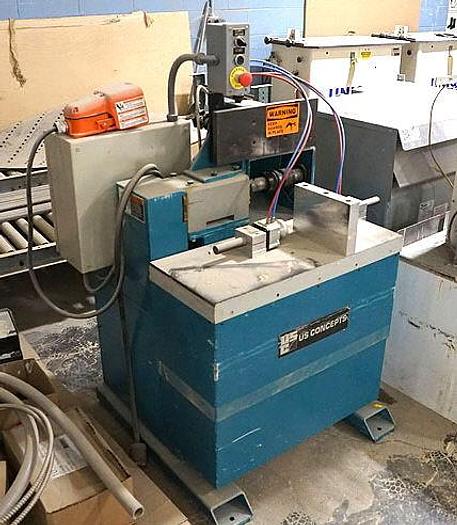

US CONCEPT CHF-8, 8” HAUNCHER
S/N:N/A, (460/60/3 electrics), S-4905
Standard Specifications:
- Ideal for machining beaded face frames, cabinet doors and more
- Moving table with stationary haunching spindle
- 7.5 HP, 230/460/60/3 haunching motor
- 2” max. thickness x 1” max. depth x 8” max. width capacities

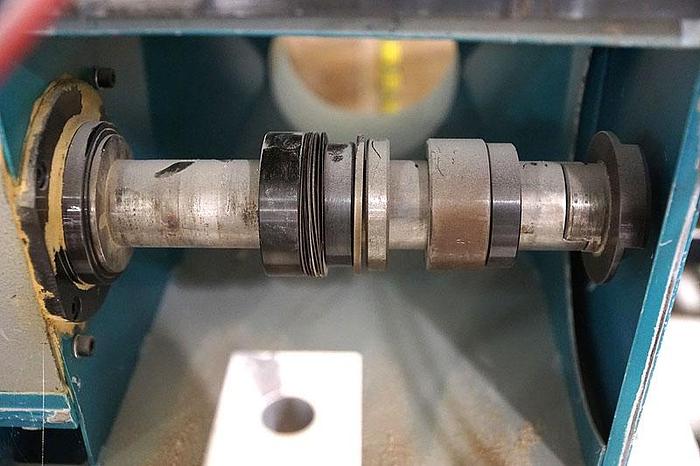

- 40 mm diameter arbor with 6” max. diam. cutterhead capacity
- 6,500 RPM spindle speed

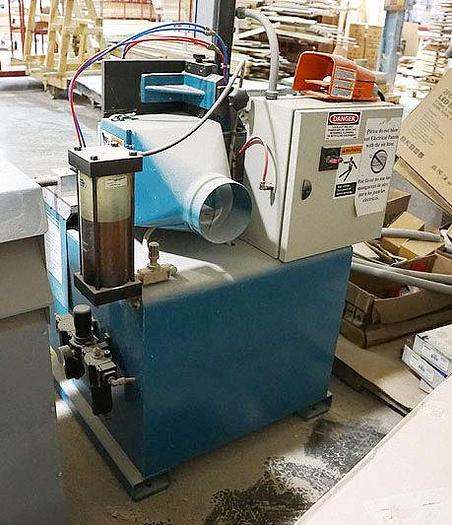

- Air over oil type arbor table feed cylinder, (0 to 21 ft/min.)
- Climb cutting motion & replaceable table insert to minimize tear-out

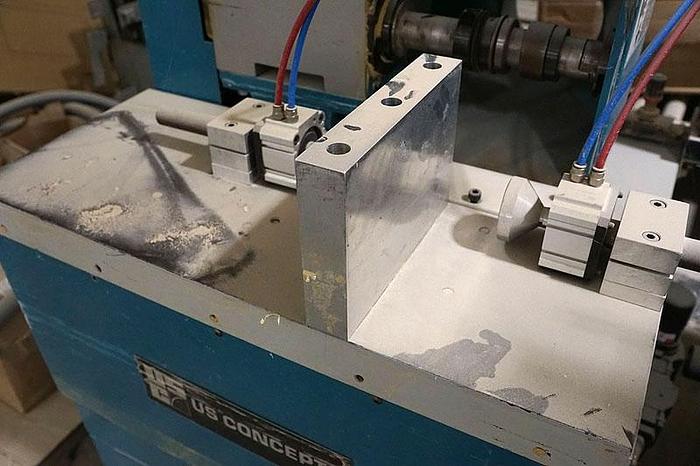

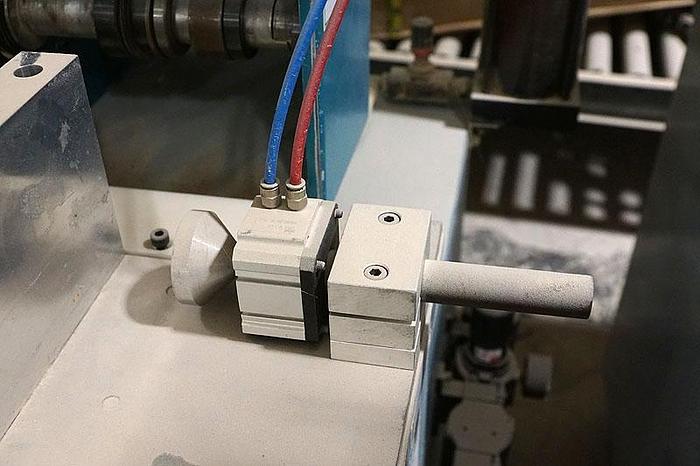

- (2) adjustable pneumatic horizontal workpiece clamps

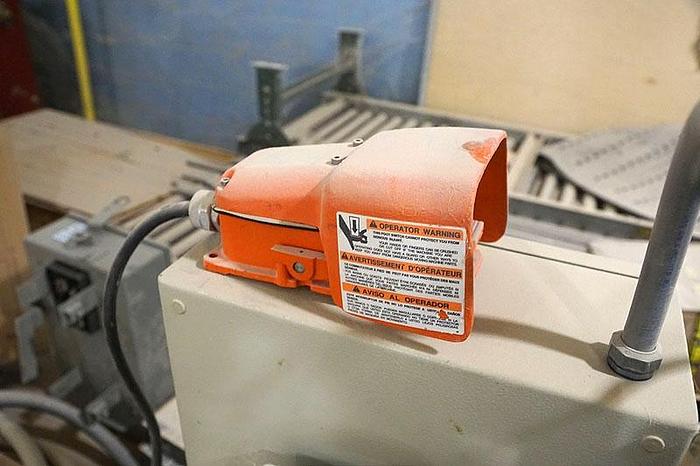

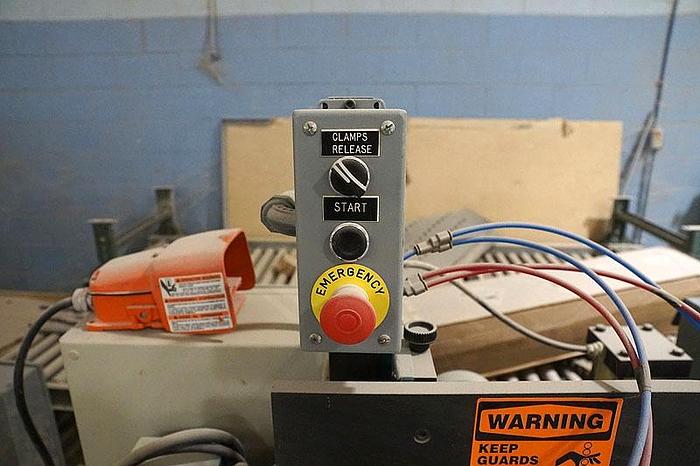

- Push button motor controls w/foot pedal cycle actuation
- Weighs approx. 600 lbs.
