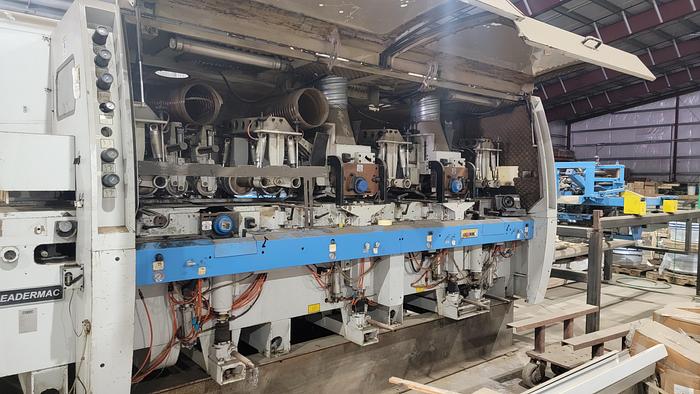

LEADERMAC PLANERMAC 445, 18" TOP AND BOTTOM 4-HEAD PLANER-MOULDER

LEADERMAC PLANERMAC 445, 18" TOP AND BOTTOM 4-HEAD PLANER-MOULDER

(2008), (460/60/3 electrics), H-1833

https://www.leadermac.com/e_html/e_4-Side_Moulder_PLANERMAC.html

Standard Specifications: (To be verified)

- 18" x 7" work piece capacity

- 50 HP, 460/60/3 bottom horizontal spindle

- 60 HP, 460/60/3 top horizontal spindle

- 50 HP, 460/60/3 top horizontal spindle

- 50 HP, 460/60/3 bottom horizontal spindle

- 25 HP 460/60/3 feed motor (300 ft/min.)

- Hydrolock outboard bearings on all horizontal spindles

- 2-1/8" diameter at 6,000 RPM spindles

- Chromed pressure plates and chipbreaker shoes

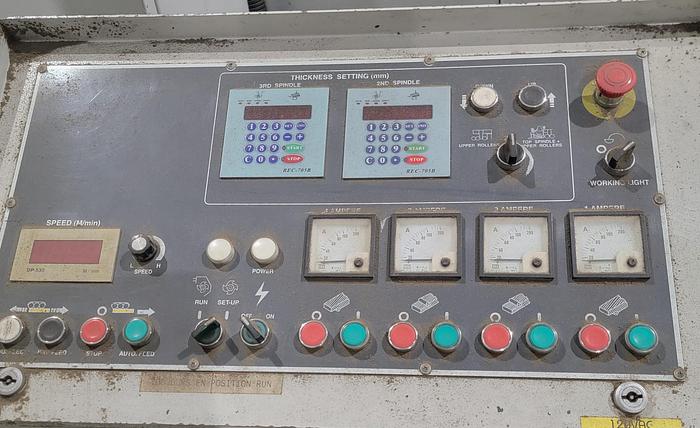

- Mechanical-digital readouts on spindle movements and hold-down shoes

- Automatic lubrication system

- 1.57" axial movement on heads, REC-705B Setworks on top heads

- Machine feeds from left to right

- Sound/safety enclosure with fluorescent lighting

- 14' x 7'-3" x 7' approximate overall machine dimensions

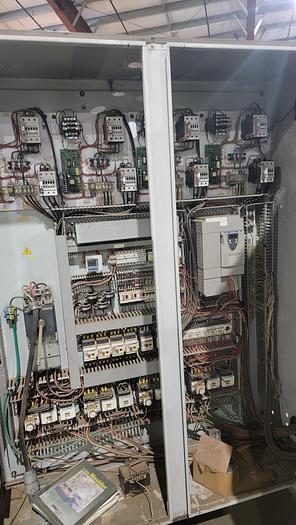

- 64" x 21" x 7' portable electric cabinet

- Weighs approx. 22,000 lbs.
