BACCI T4MO, 4-SPINDLE COPY SHAPER WITH SANDERS
No longer available
Specifications
| Manufacturer | BACCI |
| Model | T4MO, 4-SPINDLE COPY SHAPER WITH SANDERS |
| Condition | Used |
| Stock Number | CS-1211-DR |
Description

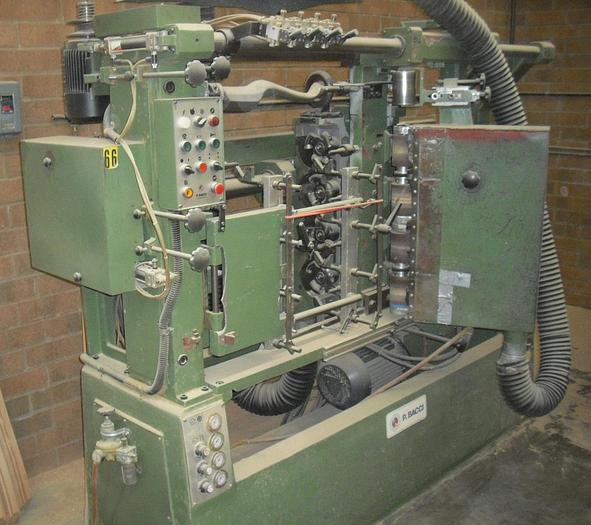

BACCI T4MO, 4-SPINDLE COPY SHAPER WITH SANDERS

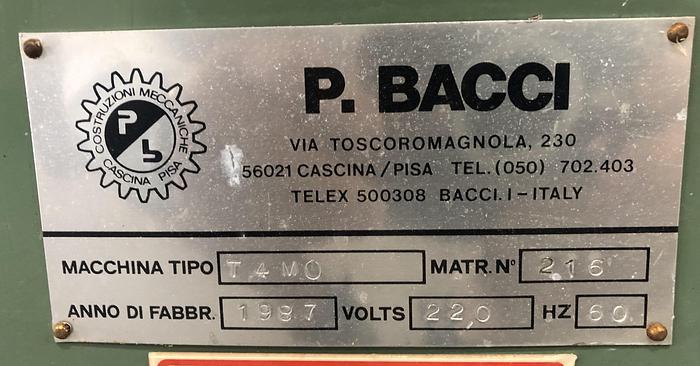

S/N:216, (1987), (220/60/3 electrics), CS-1211-DR

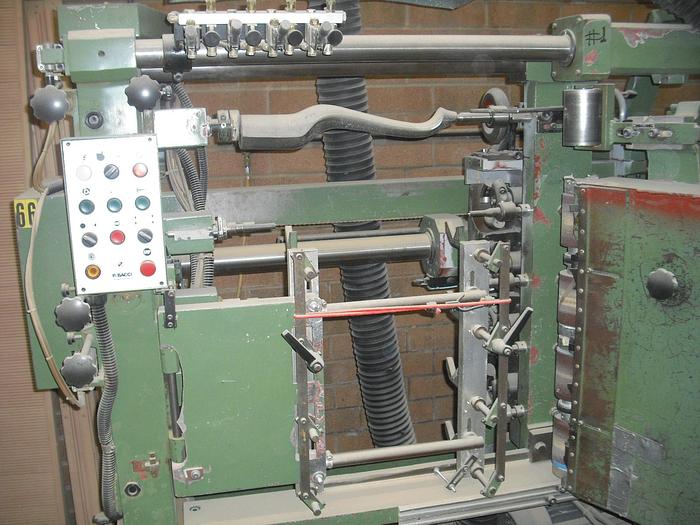

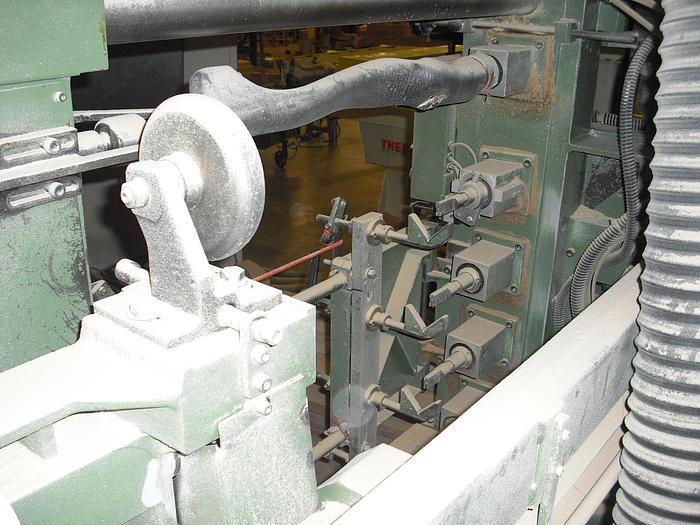

(4) spindles with pre-loading centering station and pneumatic clamping.

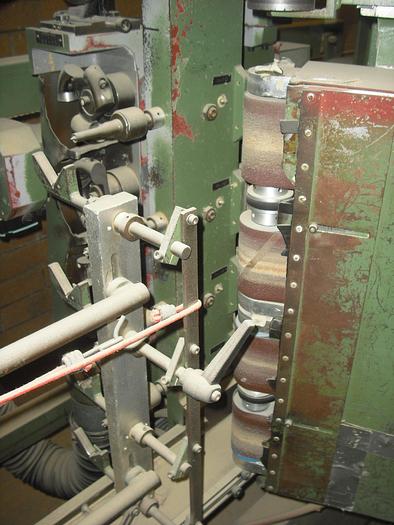

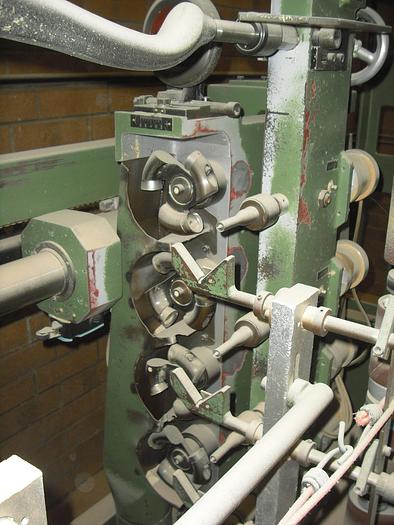

Shaping by (4) cupped cutter-heads with individual sanding heads
Standard Specifications:
- Max. copying diameter: 165 mm, (6.5")
- Minimum copying radius: 17.5 mm, (.7")
- Maximum copying length: 1,000 mm, (39.4")
- Minimum work radius: 1, (.70")
- Cutter heads motor: 7.5 KW, 10 HP
- Sanding heads motor: 2.2 KW, 3 HP
- Work-piece rotation motor: .75 KW, 1 HP
- Spindle speed: 5,300 RPM
- Cutter diameter: 35 mm, (1.4")
- Overall overall dimensions: 4' x 8' x 6'
- Approx. weight: 3,000 lbs
