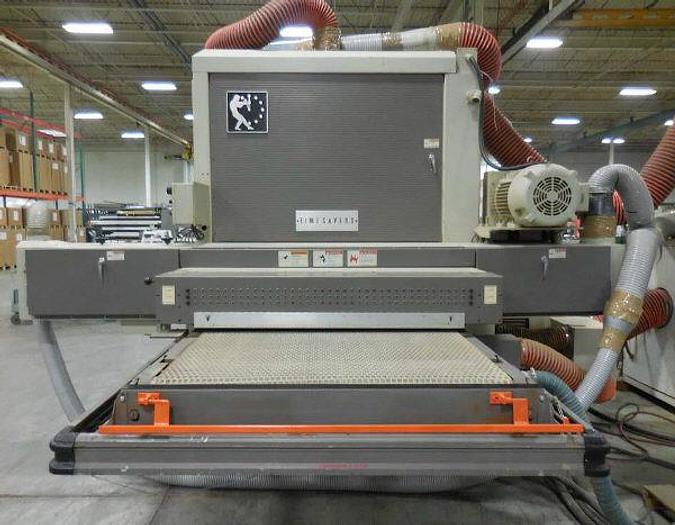

TIMESAVERS 852-4CB, 52 INCH, 4-HEAD CROSS-BELT WIDE-BELT FINISH SANDER

TIMESAVERS 852-4CB, 52", 4-HEAD CROSS-BELT WIDE-BELT FINISH SANDER S/N:23454, (460/60/3 electrics), CS-1050-TS General Specifications: - 51” max. work-piece width x 6” max. work-piece thickness capacity - 6” minimum length capacity utilizing vacuum bed - First head: 25 HP, 208-230/460/60/3 segmented cross-belt with chevron backer belt (6” wide x 280” cross-belt abrasive belt size) - Second head: 50 HP, 208-230-460/60/3, 17-3/4” diam. rubber contact drum (52” wide x 103” long abrasive belt size) - Third head: 20 HP, 208-230/460/60/3 segmented platen, (finish sand & veneer sand) (52” wide x 103” long abrasive belt size) - Fourth head: 25 HP, 208-230/460/60/3 segmented platen with Chevron backer belt (52” wide x 128” long abrasive belt size) - (20 to 80 ft/min.) hydraulic conveyor belt feed via 15 HP self-contained hydraulic pump - Vacuum hold-down feed conveyor bed, (6” x 6” min. work-piece capacity) - Motorized thickness bed adjustment by way of (4) heavy-duty bed jacks
