LEADERMAC LMC 418 SMARTMAC 8" 4-HEAD MOULDER

LEADERMAC LMC 418 SMARTMAC 8", 4-HEAD MOULDER

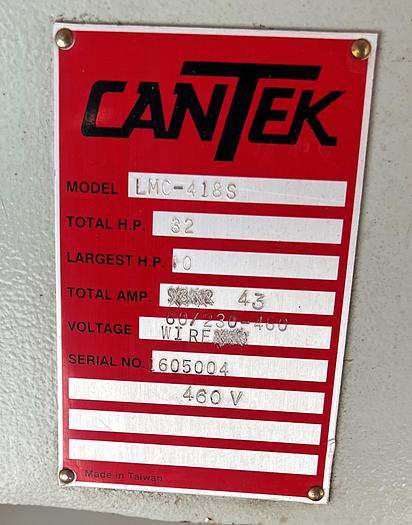

(~2019), (460/60/3 electrics), H-2046

Working Capacity

- 8” x 5” maximum working capacity, (.6” wide x .250 thick min. capacity)

- 8” min. workpiece length capacity, (butt fed)

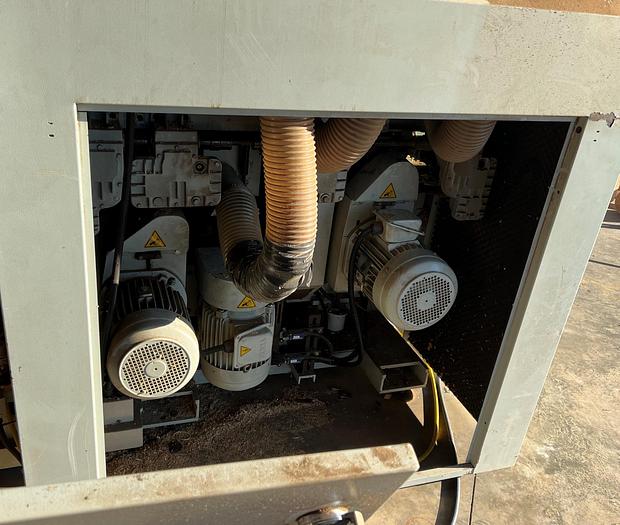

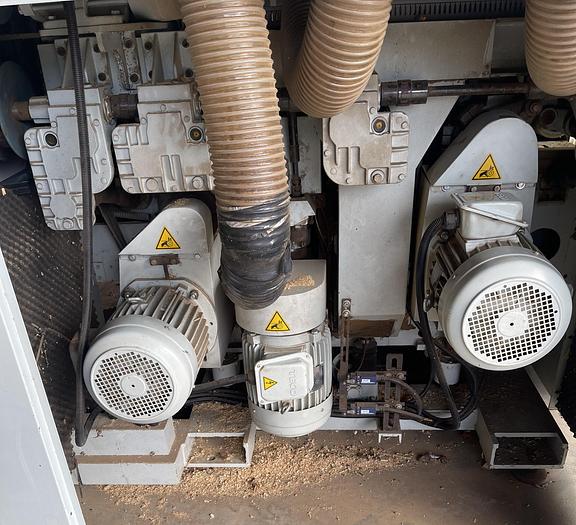

Head Configuration:

- 7.5 HP #1 bottom horizontal spindle, (spiral-head)

- 10 HP #2 left vertical spindle

- 10 HP #3 left vertical spindle

- 7.5 HP #4 bottom horizontal spindle

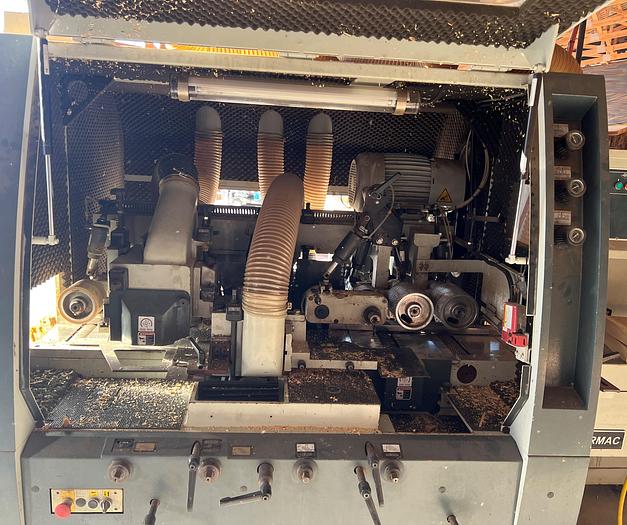

Spindles, Cutterheads, & Positioning

- 6,000 RPM spindles, (belt driven)

- 35 mm, (1.38”) diameter spindles

- Grease lubed sealed spindle bearings

- Edge reference straightening system with carbide referencing head

- Radial adjusted left vertical & top head spindles with mechanical digital readouts

- Independent manual vertical adjustment top head

Feed System

- 2 HP, dual speed drive motor, (20 to 85 ft/min)

- Full Cardan Shaft Drive to feed works with 4.7” diam. rollers

- Upper support Beam is supported on large adjustable dovetail slide

- Manually vertical adjustment of the feed beam

- All feed rolls and pressures move with top beam rise and fall

- (5) top driven feed wheels, (1 in front of top-head & 1 at the outfeed)

- Pneumatic pressure to all top feed rolls with pressure regulator controls

- Infeed driven serrated hardened steel feed rolls to the top head

- Polyurethane top feed roll after top head

- Weighs approximately 7,500 lbs.
