GRECON-DIMTER LUMBER MATERIAL-HANDLING SYSTEM / LUMBER-LINE SYSTEM FOR PLANER-LINE

GRECON-DIMTER LUMBER MATERIAL-HANDLING SYSTEM / LUMBER-LINE SYSTEM FOR PLANER-LINE

(2007), (460/60/3 electronics), H-2051

General Specifications:

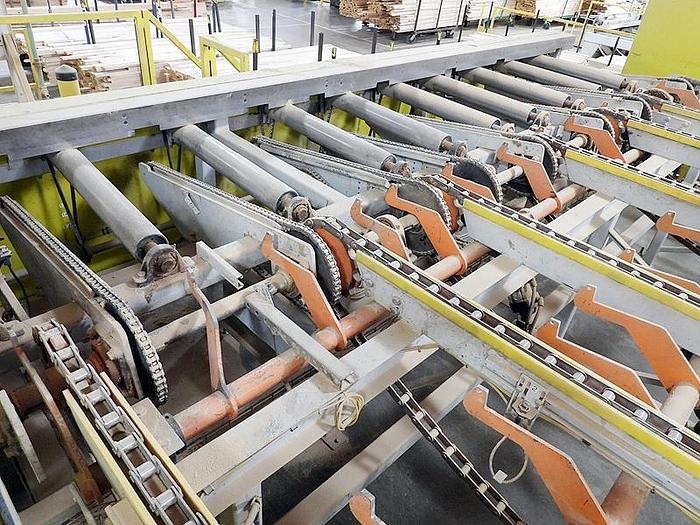

- (1) ~ 6-1/2’ wide x ~18’ long heavy-duty infeed power roller package staging conveyor

- 6-1/2” diameter rollers on 30” centers

- (1) ~ 6-1/2’ wide x ~20’ long heavy-duty infeed power roller package tilt-hoist feed conveyor

- 6-1/2” diameter rollers on 24” centers

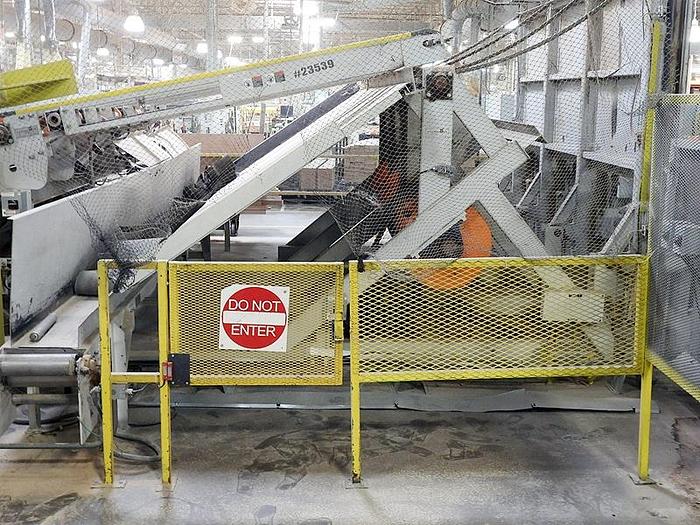

- Grecon Dimter 2007 4-arm/chain tilt-hoist, (S/N:39402, (2007)

- ~73” long arms on (53”, 48”, & 47” approx. centers)

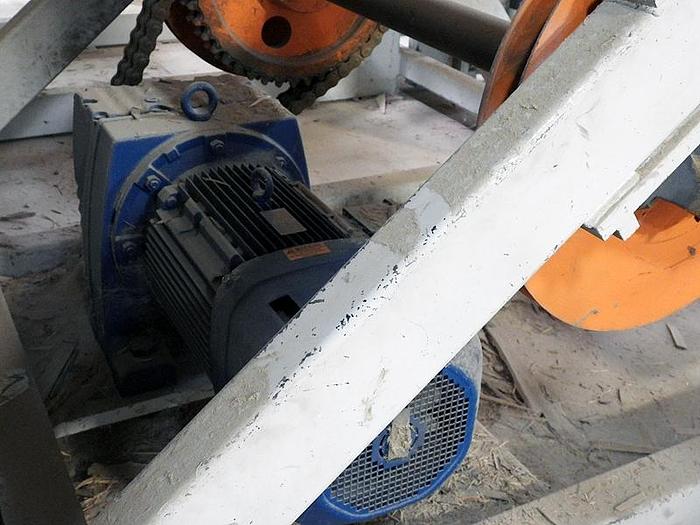

  - 15 HP, 230/460/60/3 motor/gearbox drive system

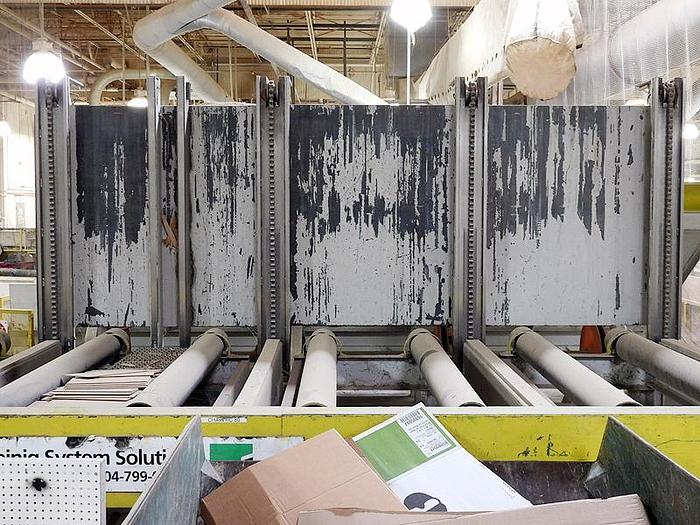

- Desticker slide 12” wide x 22’ long sticker removal belt conveyor

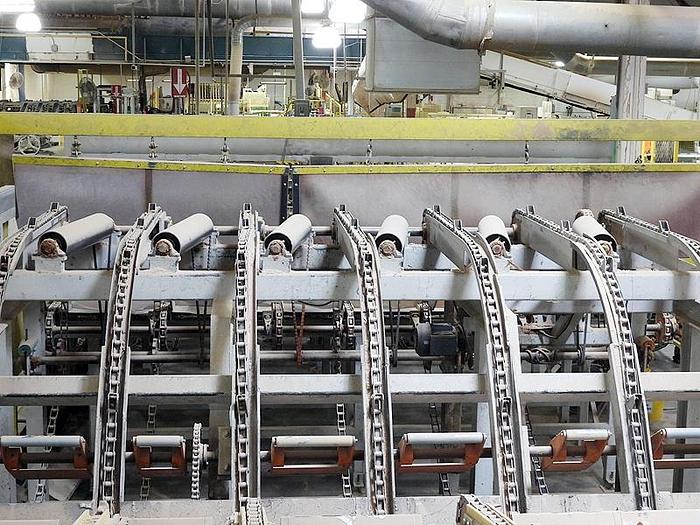

- Grecon Dimter 6-chain incline deck (S/N:39403, 2007)

  - 116” long deck with (25”, 38”, 29”, 20”, & 21” approx. chain centers)

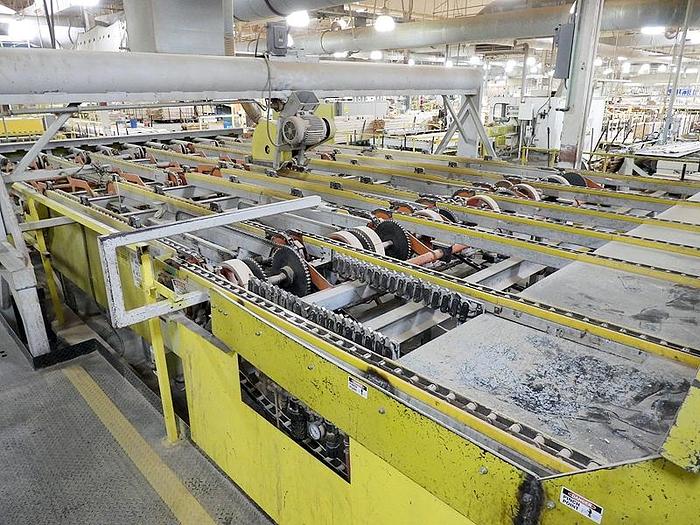

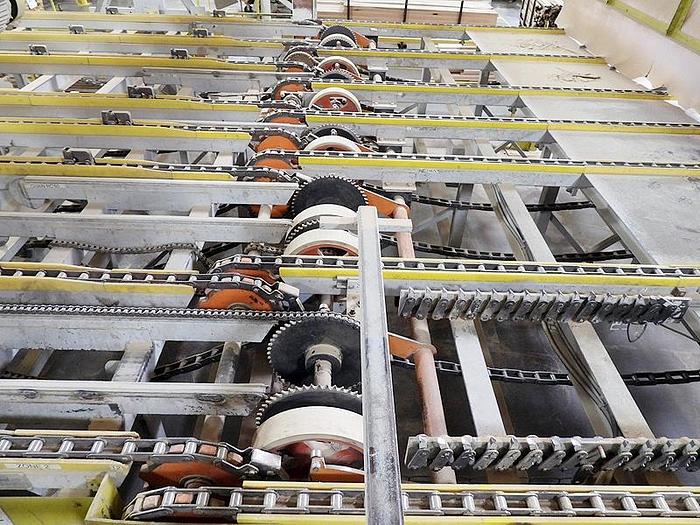

- Grecon Dimter 7-chain waterfall/unscrambler conveyor

- Flat top chains with 24” chain centers

  - lifting fingers every ~31”

  - Powered lateral angled steel roller conveyor with even-end rail

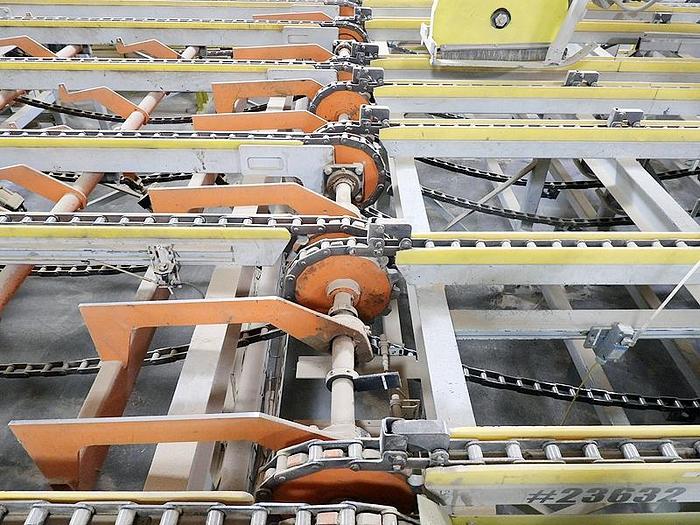

- Slides onto a 9’ long Grecon Dimter flat-top chain deck, (S/N:39407, (2007)

  - (7) chains with (38”, 31”, 22”, 20”, 32”, 31” approx. chain centers)

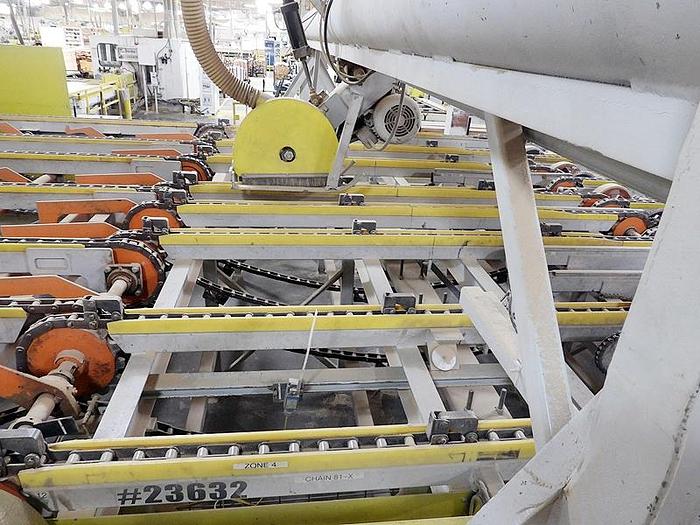

- Bridge-mounted pop up/down circular “center” spitting saw

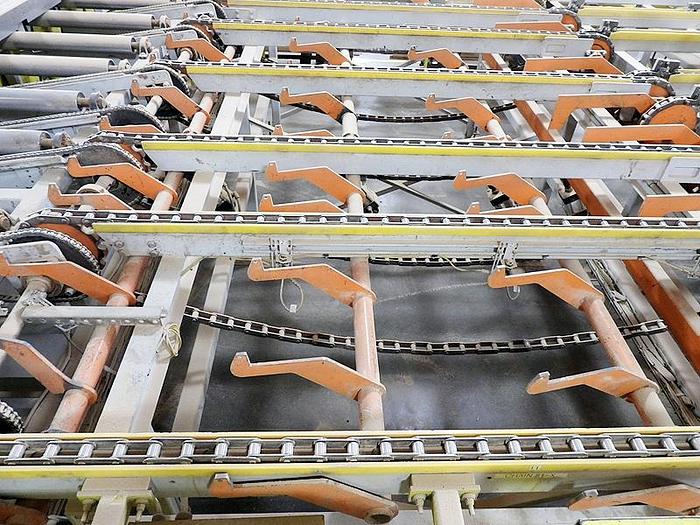

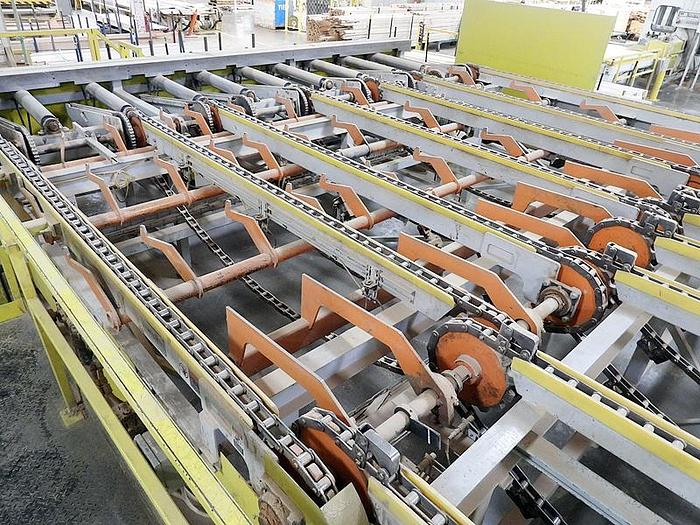

- Additional inline 9’ long Grecon Dimter flat-top chain deck, (S/N 39408, (2007)

  - (7) chains with (38”, 31”, 22”, 20”, 32”, 31” approx. chain centers)

  - (3) rows of pop-up “hold” fingers mounted between the chains

- 40” long (8) chain transfer conveyor

- 16’ long lateral infeed roller conveyor with 27” canted powered steel rollers

- End mounted bridge with (6) air craft tire pneumatic hold down

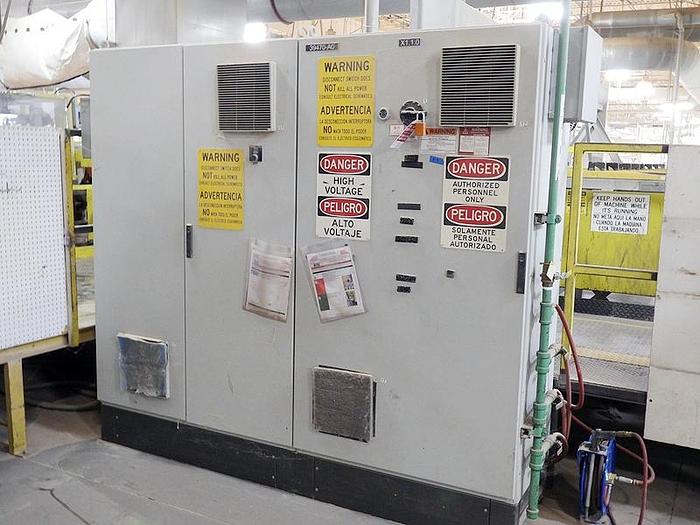

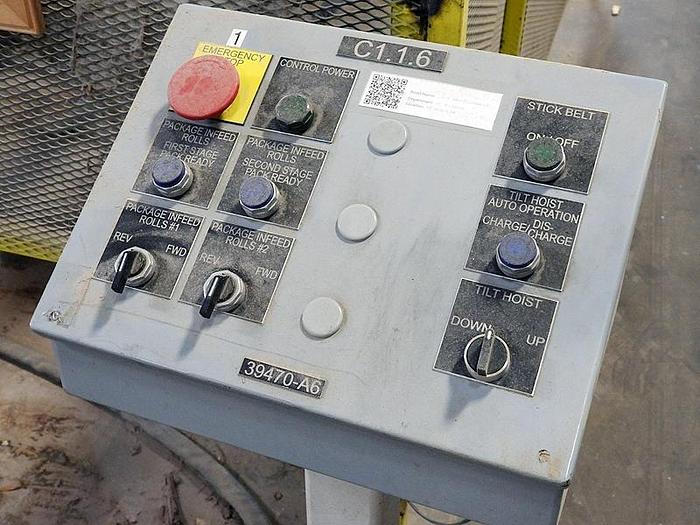

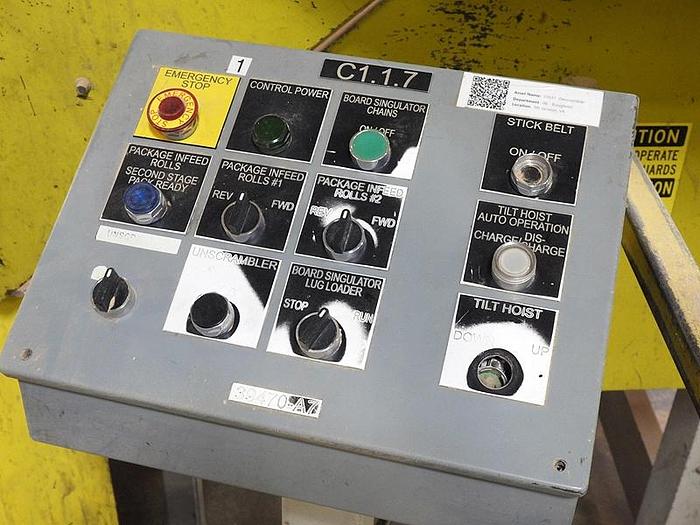

- (2) remote operator pedestal control stations with central electrical control cabinet
