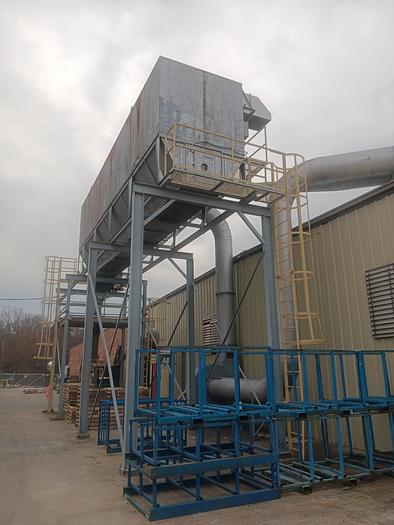

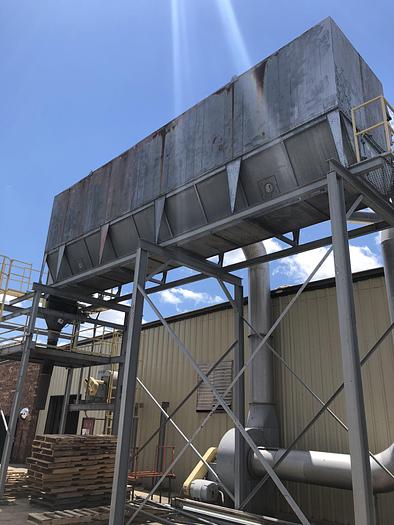

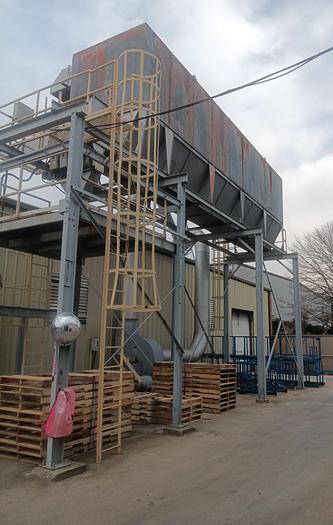

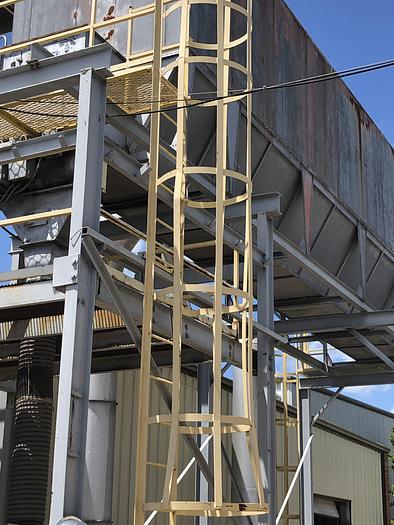

NORDFAB NFK 8AJ/1BL, 23,000 CFM MODULAR BAG-TYPE DUST-COLLECTOR

NORDFAB NFK 8AJ/1BL, 23,000 CFM MODULAR BAG-TYPE DUST-COLLECTOR

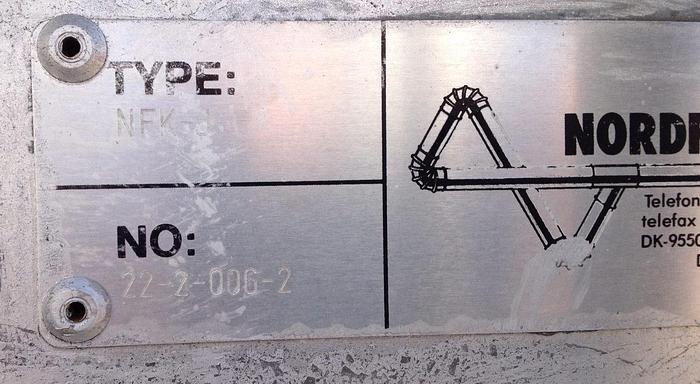

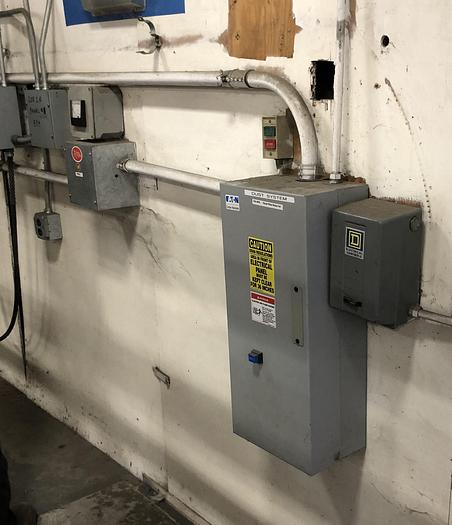

S/N:22-2-006-2, (installed 1990), (460/60/3 electrics), H-2071

Standard Specifications:

- 3,680 Ft2 total bag filter area

- (248) #89251021 - (220 mm x 1,960 mm long) filter socks

- (8) #89251020 - (220 mm x 1,375 mm long) filter socks, (located at the cleaning fan)

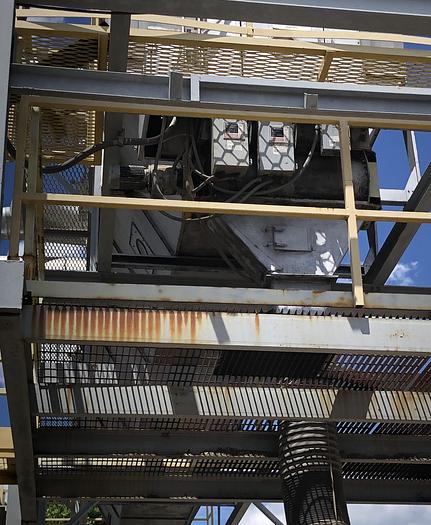

- NRS-10 type airlock

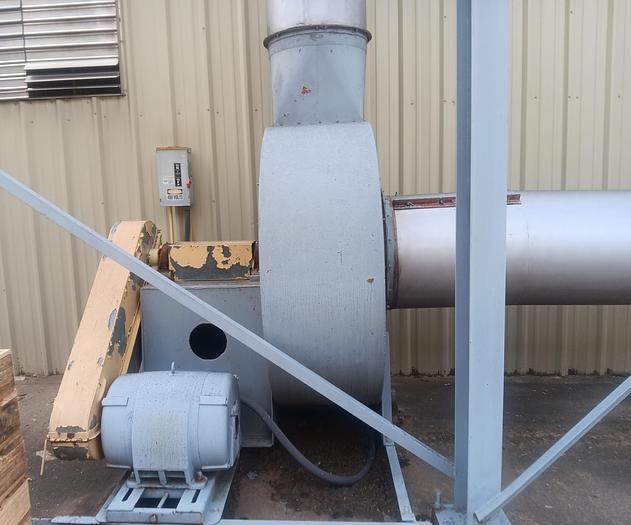

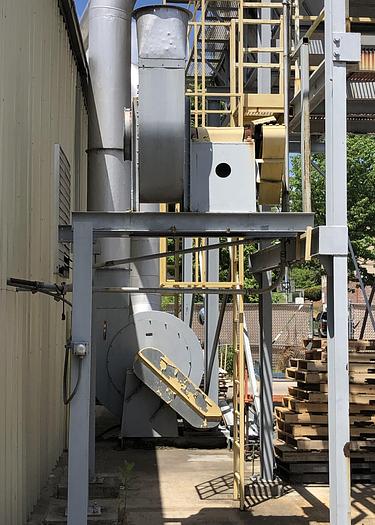

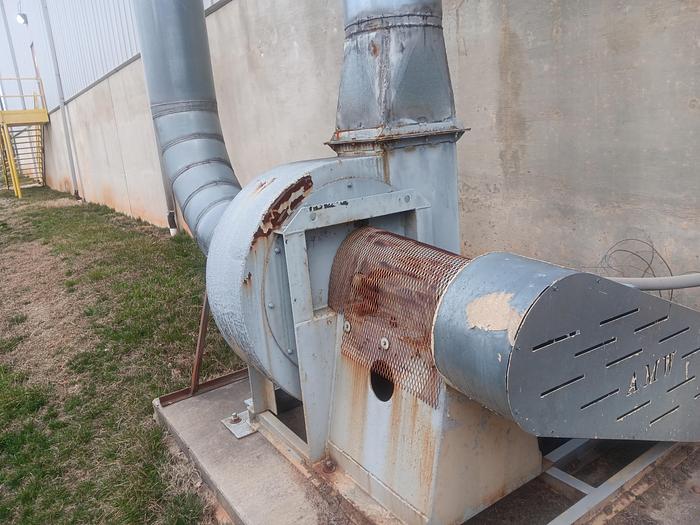

- (2) blowers included, (50 HP main & 40 HP relay)

- 24" diameter main inlet pipe

- 5/16-18 x 1-1/4” bag plate bolts

- The conveyor chain with scrapers does not require lubrication

- Includes additional blower

- 31’-10” x 7’-4” x 13’-6” tall approx. overall dimensions
